Description
Application
Model

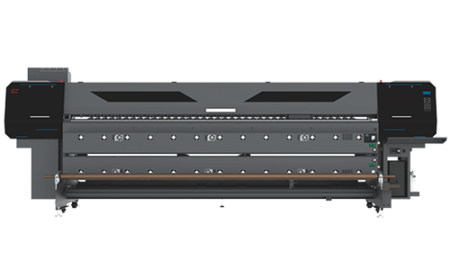

ThunderJet AQ3202S/4S
Print Head
2/4x Epson I3200 E1 Print Heads
Technology
Piezo Variable dot (Greyscale)
Ink
Eco-solvent ink (2 years outdoor duribility)
Color Config.
KCYM
Ink Supply System
Bulk ink supply system with ink cartridges
Printing Width
Max. 3200mm
Media Type
Banner, Coated PP, Vinly, PVC Film…
Roll Weight
Max. 150kgs
Core Diameter
3 in (76.2mm) or 2 in (50.8mm)
Drying System
Three heaters and Dual IR Dryers
Print Speed (m2/hr)
Mode
Draft
Production
Hi-Res
Draft
Production
Hi-Res
DPI
360×1800 dpi
720×1200 dpi
720×1200 dpi
720×1800 dpi
360×1800 dpi
720×1200 dpi
720×1200 dpi
720×1800 dpi
2 Print Heads
110m²/h
41m²/h
32m²/h
28m²/h
110m²/h
41m²/h
32m²/h
28m²/h
Print Heads
110m²/h
82m²/h
64m²/h
55m²/h
110m²/h
82m²/h
64m²/h
55m²/h
Data Interface
External: Ethernet; Internal: Fiber Optical
Working Environment
Temp.23℃~29℃, Humidity:50%~80%
Software
PhotoPRINT/ Onyx(Optional)…+GZ Printer Manager
Power
Single phase, 50Hz/AC, 220V+10%, 6.7A(Printer)+16.7A*2(IR Dryers)
Packed/Installed Size
LxWxH(mm): 4930x1150x1760/4885x1401x1661
G.W./ N.W.
1203kgs/ 914kgs
