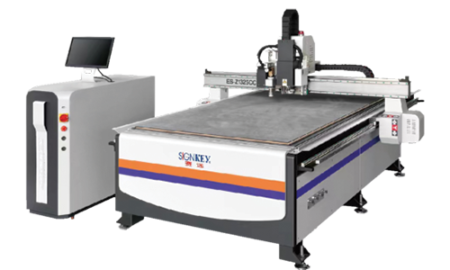

ES Z1325 CCD

Description

Model	ES-1325CCD	ES-Z1325CCD
Table Size	1300x2500x170mm
Spindle Power	Water-cooled 3.0kw 40000rpm spindle	Water-cooled 3.0kw 40000rpm spindle + Vibrating knife
Spindle Speed	10-40000rpm
Tool Diameter	Φ3.175, Φ4, Φ6, Φ8
Drive	XY AC servo, Z axis 750W AC servo, A axis 200W AC servo
Control System	Sairui dedicated CCD system
Mechanical Structure	Industrial steel pipe box-type structure
Transmission System	Z-screw direct connection; X, Y – ground helical rack + planetary gearbox
X, Y, Z Linear Guide	Linear guide
Repeatability	<0.03mm/300mm
Max Unloaded Speed	100m/min
Data Transmission	USB
Instruction Format	HPGL or standard G code
Power	AC220V or 380V, 50-60Hz
Vacuum Pump	7.5kw air-cooled vacuum pump
Dust Collection System	High-Power Intelligent Vacuum System
Machine Dimensions	200031001650mm
Packaging Dimensions	215032502000mm
