TECHNICAL SPECIFICATIONS

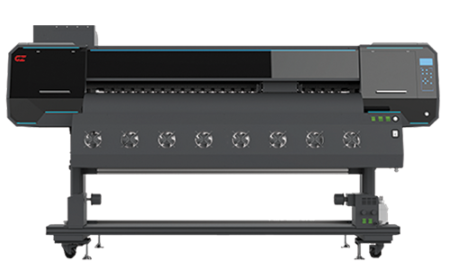

| Product Name | Thunderjet AQ1802S | Thunderjet AQ1804S |
| Dimensions ( Lx W x H mm) | 3102 x 1010 x 1717 | 3102 x 1010 x 1717 |
| Max. Printing Size (mm) | 1800 | 1800 |
| Max. Media Size (mm) | 1800 | 1800 |
| Printhead | 2 Unit EPSON i3200-E1 | 4 Units EPSON i3200-E1 |
| Printing Speed | ||
| Production 360×1800 dpi | 34 m2/h | 60 m2/h |
| High-Res 720×1200 dpi | 23 m2/h | 40 m2/h |
| Photo 720×1800 dpi | 16 m2/h | 30 m2/h |
| Ink Color | CMYK | |
| Media Type | Banner, Coated PP, Vinyl, PVC film…. | |
| Roll Weight | Max. 50kg | |
| RIP Software | FlexiPRINT / ONYX (optional)…+GZ Printer Manager | |
| Resolution (dpi) | 360×1200, 360×1800, 720×1200, 720×1800 | |
| Interface | External: Ethernet; Internal: Fiber optic | |
| Ink Supply System | Bulk ink supply system with ink cartridges | |
| Ink Tank | 1500 ml | |
| Roll Diameter | Max. 300mm | |
| Core Diameter | 3 Inch (76.2mm) or 2 Inch (50.8mm) | |
| Input Voltage | Single-phase, 50Hz/AC, 200V+-10%, 6.7A(Printer)+14.6A(IR Dryer) | |
| Working Environment | Temperature: 30°C – 30°C Humidity: 35% – 65% RH | |
| Weight (kg) | 340 | |
