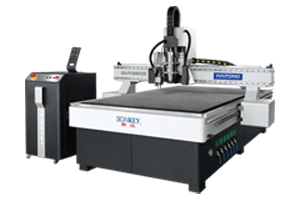

S2-1325CCD/S2-Z1325CCD
INSPIRING INNOVATION keeping work smooth and hassle free
Please contact us for more information
Description
TECHNICAL SPECIFICATIONS
| Model |
S2-1325CCD |
S2-Z1325CCD 2H |
S2-Z1325CCD 3H |
| Working Size |
1300 x 1250 x 50 mm |
| Max. Material Height |
150 mm |
| Spindle RPM |
0-2400 rpm (optional: 40000 rpm) |
| Spindle Power |
Water Cooling 3kw Spindle |
O.S / O.D |
O.D.S |
| Tools Diameter |
03.175, 04, 06, 08, 012.7 |
| Control System |
Hybrid Servo |
XY hybrid servo, Z AC servo 750W, AC servo 200w |
| Control System |
SIGNKEY CCD control system |
| Mechanical Structure |
Industrial Square Steel Pipe |
| Transmission |
Ball screw for Z; Belt and rack & pinion for X,Y |
| XYZ Rails |
Linear rails |
| Repositioning Accuracy |
<0.03mm / 300mm |
| Max. No-loading speed |
20 m/min |
40 m/min |
| File Transfer |
USB |
| File Format |
HPGL, G Code or HPGL |
| Power Supply |
AC220V or 380V, 50-60Hz |
| Working Table |
Vacuum table, with T slot |
| Vacuum Pump |
7.5kw, 7.5kw air cooling pump |
| Dust Collector System |
High-power intelligent dust collection system |
| External Form Size |
2000 x 3100 x 1650 mm |
| Packing Size |
2150 x 3250 x 2000 mm |
