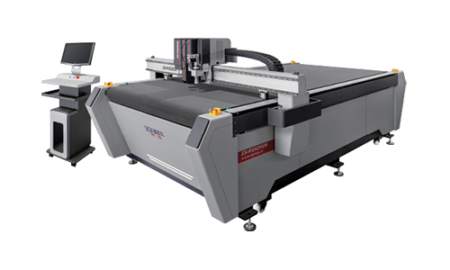

ES-R1625OD/OS/ODS-AT
INSPIRING INNOVATION keeping work smooth and hassle free
Please contact us for more information
Description
TECHNICAL SPECIFICATIONS
| Model |
ES-r1625od |
ES-r1625os |
ES-r1625ods-at4 |
| Table Size |
1620 x 2550 mm |
| Working Size |
1520 x 2500 x 140 mm |
| Feed Height |
140 mm |
| Spindle |
None |
3KW/220V Water Cooling |
5.5KW/220V Water Cooling ATC Spindle |
| Tool |
Oscillating Knife & Drag Knife |
Oscillating Knife & Spindle |
Oscillating Knife & Drag Knife & Spindle |
| Oscillating Knife Frequency |
15000~20000 rpm |
| Air Pressure Specification |
90PSi/16Cfm |
| Shank Mode |
None |
By Manual |
HSK |
| Tool Stock |
None |
ER20 |
HSK E32 |
| Spindle Rotary Speed |
None |
0~40000 rpm |
0~36000 rpm |
| Tool Diameter |
None |
Φ3.175, Φ4, Φ6, Φ8 |
Φ3.175, Φ4, Φ6, Φ8, Φ12.7 |
| Driver |
AC Servo |
| Control System |
SIGNKEY Customized Control System |
| Transmission |
Z-Ball Screw Direct Connection; X,Y Rack + Planetary Reducer |
| XYZ Rail |
Imported Linear Rail |
| Max. Unloaded Speed |
120m/minute |
| Voltage |
380V, 50-60KW |
| Working Table |
Vacuum & Rolling Feeding |
| Sorting Platform |
Optimal Sorting Platform Includes Projector And Projector Stand |
| Dust Collect |
Powerful Dust Collector |
| Vacuum Pump |
7.5KW Air Cooling |
| Voltage |
380V, 50-60Hz |
| Machine Size |
3900/5300(sroting platform) x 2500 x 1700 mm |
3900/5300(sroting platform) x 2500 x 1700 mm |
3900 x 3000 x 1630 mm |
| Package Size |
4000 x 2200 x 1800 mm |
| Net/Gross Weight |
1700/2000 kg |
1700/2000 kg |
2200/2500 kg |
| Vacuum Pump |
2000 x 3000 mm, 2000 x 4000 mm, 5300 x 3500 mm |
