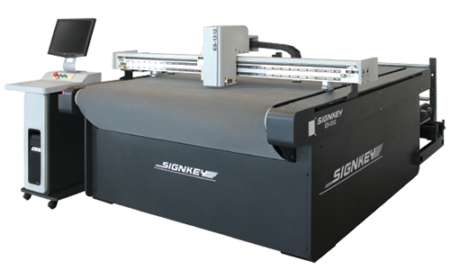

ES-6090/ES-1312
INSPIRING INNOVATION keeping work smooth and hassle free
Please contact us for more information
Description
TECHNICAL SPECIFICATIONS
| Model |
ES-6090 |
ES-1312 |
| Working Size |
600x900x5 mm |
1300x1200x5mm |
| Feed Height |
10 mm |
| Tool |
Drag Knife, Plotter Knife, Creasing Wheel |
| Driver |
AC Servo |
| Control System |
SIGNKEY |
| Camera |
5 Million Pixels Industrial Camera |
| Machine Structure |
Industrial steel pipe box-type structure |
| Transmission |
Z-Ball Screw, XY Belt |
| X, Y, Z Linear |
Linear rail |
| Repetitive Accuracy |
<0.05mm/300mm |
| Max No-loaded Speed |
150m/min |
| Max Processing Speed |
10~100m/min |
| Working Table |
Double Layer Adsorption Vacuum Table + Rolling Feeding |
| Roll Material Feed Device |
Yes |
| Roll Material Automatic Deviation Device |
Optional |
Yes |
| Vacuum Pump |
1.5KW Air Cooling |
2.2KW Air Cooling |
| Data Transmission |
Ethernet |
| Instruction Format |
HPGL or Standard G-Code |
| Power Supply |
220V/50-60Hz |
| Machine Size (include material feed device) |
2100x1450x1350mm |
2900x2100x1350mm |
| Weight |
500/800kg |
2800/1000kg |
| Optional Table Size |
1600x2500mm, 2000x3000mm, 2000x4000mm |
