Description
Application
Model

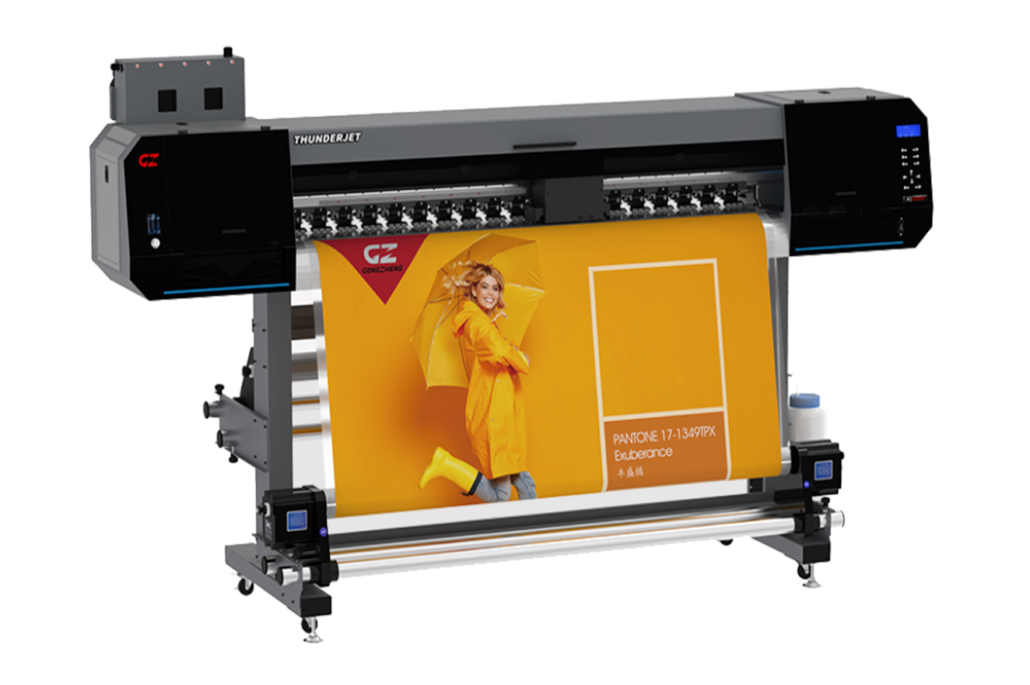

Thunderjet AQ1602 UV
Print Head
1~2 Epson i3200 U1 print heads
Technology
Drop-On-Demond Piezo with Variable Dot
Curing System
Dual Water Cooling LED UV Lamps
Colors
2 x YMCK; 1 x YMCK + W; W + 1 x YMCK
Ink Supply System
Dulk ink system + White ink stirring system
Ink Tank
1000ml
Max. Print Width
1800mm
Media Type
Banner, Coated PP, Vinyl, Backlit textile, PVC film, PET film, etc.
Roll Diameter
Max. 300mm
Roll Weight
Max. 50kgs
Core Diameter
3′(76.2mm) or 2′(50.8mm)
Weight
380kg / 280kg
Print Speed (m2/hr)
Draft
Production
Hi-Res
Production
Hi-Res
1 P.H.
11.5m²/h
9.5m²/h
7m²/h
6m²/h
11.5m²/h
9.5m²/h
7m²/h
6m²/h
2 P.H.
20m²/h
18m²/h
14m²/h
12m²/h
20m²/h
18m²/h
14m²/h
12m²/h
Data Interface
USB 2.0
Working Environment
Temp. 23℃~29℃, Humidity: 50%~80%
Software
PhotoPrint Mini UV/Onyx(Optional)…+GZ Control Console
Power
Single phase, 50Hz/AC, 220V±10%, 5A(Printer+UV Controller)
Packed / Installed Size
3300mm(L) x 1100mm(W) x 750mm(H) / 3126mm(L) x 924mm(W) x 1396mm(H)
Gross Weight/ Net Weight
384kgs / 280kgs
